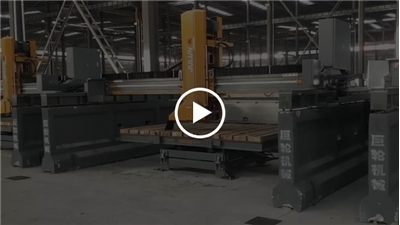

SQC-450/600/700-4D Bridge Cutting Machine (Guide Pillar Type)

SQC-450/600/700-4D Bridge Cutting Machine (Guide Pillar Type)
  • Features
  • Details
  • Case
  • Video

SQC-450/600/700-4D Uses PLC system and Human-machine Interface, combined with ultra-high precision rotary encoder to locate and infrared device, uses inverter to control left-right feeding, adjusts the speed according to the stone material. It uses hydraulic lifting system, combination of Chrome-plated guide pin and wear guide bush, with small gap, wearable, beautiful structure, and Guide Sleeve with multi-layer seals, with waterproof, dustproof , anti-spill, improving the service life. Main spare parts adopt imported good-quality materials. Thus the whole machine is featured with high cutting efficiency, high cutting precision , high stability, easy –operating to suit granite and marble with high value and big size.


名稱 Appellation Unit SQC-450-4D SQC-600-4D SQC-700-4D
最大鋸片直徑 Max.blade diameter mm Φ450 Φ600 Φ700
最大升降行程 Max.lifting stroke mm 220 350 470
工作台尺寸 Worktable size mm 3200×2000
工作台旋轉範圍(可選) Worktable rotation range(optional) ° 0°- 90°/0°- 360° (Set up by each 45 degree)
工作台翻闆角度 Worktable turn-over degree ° 0°- 85°
工件最大加工高度 Max.rocessing height mm 100 180 220
耗水量 Water consumption m³/h 3
主電機功率 Power of main motor kw 15 18.5 18.5
總功率 Total power kw 21 24 24
外形尺寸 Dimension(L×W×H) mm 6000×4800×3100 6000×4800×3300 6000×4800×3400
總重量 Weight kg 5600 (含基座10200kg) 5800 (含基座10500kg) 6000 (含基座10800kg)
