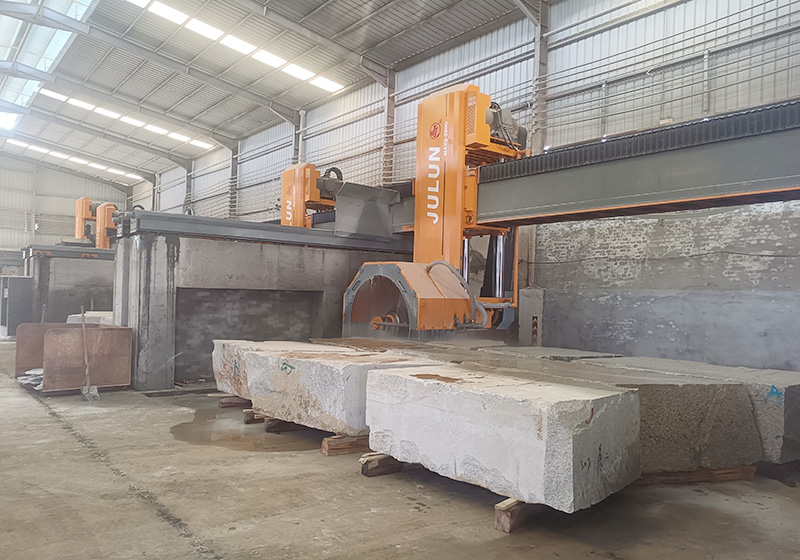

MAX2-26P Bridge Combined Block Cutting Machine (Casting Type)

  • Features
  • Details
  • Case
  • Video

MAX2-26P Uses PLC system and Human-machine interface, combined with Ultra-high precision rotary encoder to slice, uses inverter to control left-right feeding and adjusts the speed according to the stone material. It uses three oil cylinders hydraulic lifting system, the lifting counterweight is more reasonable and more smooth. Combined with large-diameter chrome-plated guide pillar and boundary lubricated copper sleeve, with small gap, wearable, beautiful structure and stable lifting. The guide sleeve with multi-layer seals, with waterproof, dustproof and leak-proof, which improves the service life. Adopts large cross-section crossbeam, machine running is more stable, can hang more blades, with higher cutting efficiency. Forward-backward slicing uses high-precision screw nut driving, automatic slicing. The key part adopts imported good-quality spare parts. The block can be placed on the ground directly and economize the worktable and its maintenance costs. The whole machine is featured with high cutting efficiency, high slicing precision, slab with good flatness after cutting. Machine is with high stability, easy-operating, suits for cutting market slab, common slab, big slab and high-value slab.



名稱 Appellation Unit MAX2-26P
橫梁 Crossbeam mm 9500 / 10500
邊梁 Sidebeam mm 5000-7500(Casting Type)
8500-11500(Steel Part Type)
導柱直徑 Guide pillar diameter mm Φ210(Bearing Bush Sleeve)
鋸片直徑 Max.blade diameter mm Φ1800
最多鋸片數量 Max.blade number mm 26-32
左右行程 Left-right stroke mm 5900 / 6900
前後行程 Forward-backward stroke mm 5600(Sidebeam 7500)
6600(Sidebeam 8500)
7600(Sidebeam 9500)
9600(Sidebeam 11500)
最大升降行程 Max.lifting stroke mm 1400
耗水量 Water consumption m³/h 15
主電機功率(可選配) Power of main motor(optional) kw 110
總功率 Total power kw 124
外形尺寸(長×高) Dimension(L×H) mm 10000-11000×4050
總重量 Weight kg 28000-32000

Kind reminder: If you would like to know more details, specifications, standards, prices, and solutions, please contact us.
