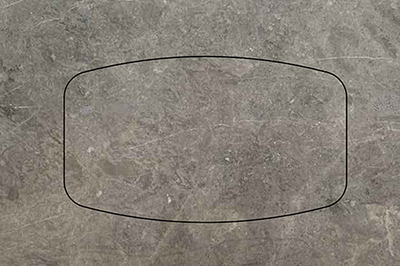

CNC500 5 axis bridge cutting machining center, adopts high-end industrial tablet computer and ultra-high precision special camera system, applies programming language of computer aided manufacturing, suits for size-to-size slab and various special shapes cutting and profiling (such as arc lines, straight lines, shaped lines, villa window lines and garden plaza medallion). This machine with the advantages of large stroke, fast speed, wide processing range, high precision, simple and intelligent operation, one machine for multi-purpose, etc. Suits for marble, artificial stone, quartz and granite stone processing enterprises. (can match milling and drilling system to do 3D profiling cutting, 2D engraving and 3D engraving this kinds of complex shaped three-dimensional processing.
| 名稱 | Appellation | 單位/Unit | CNC605 |
| 鋸片直徑 | Max blade diameter | mm | Φ400~Φ600 |
| 最大加工尺寸（長×寬×高） | Max processing size(L*W*H) | mm | 3200×2000×500 |
| 左右行走行程（X軸） | Left-right movement stroke (X axis) | mm | 4100 |
| 前後行走行程（Y軸） | Forward-backward movement stroke (Y axis) | mm | 2900 |
| 升降行程（Z軸） | Lifting stroke (Z axis) | mm | 500 |
| 主軸旋轉角度範圍（C軸） | Range of spindle rotation degree (C axis) | 度/° | 0-360° |
| 主軸傾斜角度範圍（A軸） | Range of spindle inclination degree (A axis) | 度/° | 0-90° |
| 工作台翻闆角度範圍 | Range of worktable turn-over degree | 度/° | 0-85° |
| 耗水量 | Water consumption | m³/h | 2 |
| 主電機功率 | Power of main motor | kW | 22 |
| 總功率 | Total power | kW | 36 |
| 外形尺寸（長×寬×高） | Dimension(L×W×H) | mm | 6760×3880×3650 |
| 拍照功能（視覺系統） | Camera function (visual system) | √ | |
| 對刀功能（刀具直徑測量系統） | Alignment function (Blade diameter measurement system) | 可選配can match | |
| 測厚功能（闆材厚度測量系統） | Thickness measurement function (Slab thickness measurement system) | 可選配can match | |
| 吸盤功能（切割闆材分闆系統） | Suction cup function (Slab cutting separating system) | 可選配can match | |
| 銑刀功能（銑、鑽雕刻系統） | Milling cutter function (Milling, drilling, engraving system) | 可選配can match |
